Command Line Interface
This chapter introduces the DX-RT command-line tools for model inspection, inference testing, and device management. These tools allow developers to validate models, measure performance, and control hardware directly from the terminal.
These utilities are essential for validating model compilation, tuning inference performance, and maintaining the health and configuration of the underlying NPU hardware.
Parse Model
This tool parses a compiled .dxnn model file and displays detailed information such as model structure, input/output tensors, and metadata.
Source
cli/parse_model.cpp
Usage
parse_model -m <model_dir>
Option
-m, --model FILE model path (required)
-v, --verbose show detailed task dependencies and memory usage
-o, --output FILE save the raw console output to a file (without color codes)
-j, --json extract JSON binary data (graph_info, rmap_info) to files
-h, --help show this help message
Example
$./parse_model -m model.dxnn
Run Model
This tool executes a compiled model to verify basic functionality, measure inference time, and optionally perform repeated runs for stress testing.
Source
cli/run_model.cpp
Usage
run_model -m <model_dir> -i <input_bin> -o <output_bin> -r <reference output_bin> -l <number of loops>
Option
-m, --model arg Model file (.dxnn)
-b, --benchmark Perform a benchmark test (Maximum throughput)
(This is the default mode,
if --single or --fps > 0 are not specified)
-s, --single Perform a single run test
(Sequential single-input inference on a
single-core)
-v, --verbose Shows NPU Processing Time and Latency
-n, --npu arg NPU bounding (default:0)
0: NPU_ALL
1: NPU_0
2: NPU_1
3: NPU_2
4: NPU_0/1
5: NPU_1/2
6: NPU_0/2
-l, --loops arg Number of inference loops to perform (default:
30)
-t, --time arg Duration of inference in seconds (benchmark and
target-fps mode, overrides --loops) (default: 0)
-w, --warmup-runs arg Number of warmup runs before actual measurement
(default: 0)
-d, --devices arg Specify target NPU devices.
Examples:
'all' (default): Use all available/bound NPUs
'0': Use NPU0 only
'0,1,2': Use NPU0, NPU1, and NPU2
'count:N': Use the first N NPUs
(e.g., 'count:2' for NPU0, NPU1) (default: all)
-f, --fps arg Target FPS for TARGET_FPS_MODE (default: 0)
(enables this mode if > 0 and --single is not
set)
--use-ort Enable ONNX Runtime for CPU tasks in the model
graph
If disabled, only NPU tasks operate
--profiler Enable profiler
--buffer-count arg Number of input/output buffers, count's range is
1~100 (default: 6)
-h, --help Print usage
Examples
Basic inference with 100 loops:
run_model -m /.../model.dxnn -i /.../input.bin -l 100
Enable profiler to collect detailed timing data:
run_model -m model.dxnn --profiler -l 50
This generates a profiler.json file in the working directory containing detailed performance metrics.
Configure buffer count for optimized throughput:
run_model -m model.dxnn --buffer-count 8 -l 100
Adjust the number of input/output buffers (range: 1-100) to balance memory usage and inference throughput. Higher buffer counts can improve performance in pipelined scenarios.
Combined options with profiling and custom buffer count:
run_model -m model.dxnn --profiler --buffer-count 10 -l 200 -v
Benchmark mode with profiling enabled:
run_model -m model.dxnn --benchmark --profiler -t 60
Run benchmark for 60 seconds with profiling enabled to analyze performance bottlenecks.
DX-RT CLI Tool (Firmware Interface)
This tool provides a CLI for interacting with DX-RT accelerator devices, supporting device status queries, hardware resets, and firmware updates.
This tool is applicable only for accelerator devices.
Usage
dxrt-cli <option> <argument>
Option
-s, --status Get device status
-i, --info Get device info
-m, --monitor arg Monitoring device status every [arg] seconds
(arg > 0)
-r, --reset [=arg(=0)] Reset device(0: reset only NPU) (default: 0)
-d, --device arg Device ID (if not specified, CLI commands will
be sent to all devices.) (default: -1)
-u, --fwupdate arg Update firmware with deepx firmware file.
sub-option : [force:force update, unreset:device
unreset(default:reset)]
-g, --fwversion arg Get firmware version with deepx firmware file
-C, --fwconfig_json arg Update firmware settings from [JSON]
-v, --version Print minimum versions
-h, --help Print usage
Example
dxrt-cli --status
dxrt-cli --reset 0
dxrt-cli --fwupdate fw.bin
dxrt-cli -u fw.bin
dxrt-cli -m 1
Firmware update issue
If an issue occurs during firmware update with dxrt-cli -u or dxrt-cli --fwupdate, run the following sequence:
# service off
sudo systemctl disable dxrt.service
sudo systemctl stop dxrt.service
dxrt-cli -u fw.bin
# service on
sudo systemctl enable dxrt.service
sudo systemctl start dxrt.service
NPU Monitoring Utility
DX-TOP is a real-time command-line utility designed to monitor the status, utilization, and health metrics of Neural Processing Unit (NPU) devices managed by the DX-Runtime. It provides critical information necessary for performance tuning, debugging, and system health checks.
Utility Versions (Header Information)
The top section of the screen displays the version of the core software components.
| Item | Description |
|---|---|
| DX-RT | DX-Runtime Version. The version of the core software stack that manages NPU operations. |
| NPU Device Driver | NPU Driver Version. The version of the operating system driver responsible for hardware communication. |
| DX-TOP | Monitoring Tool Version. The version of the DX-TOP utility itself. |
Device Status Monitoring
DX-TOP organizes information by individual NPU devices installed in the system.
Device Hardware Information
This section identifies the physical hardware and firmware configuration of the NPU card.
| Item | Description |
|---|---|
| Device ID | The unique identifier assigned to the NPU card (e.g., 'Device :0'). |
| Variant | The model or variant of the NPU hardware (e.g., M1). |
| PCIE Bus Number | The PCI Express bus location of the device (e.g., 02:00:00). This is crucial for hardware-level identification. |
| Firmware | The version of the embedded firmware running on the NPU hardware. |
| NPU Memory | The memory utilization of the on-board dedicated NPU memory. Displays Used MiB / Total GiB (Usage %). |
Core Performance Metrics
Each device contains multiple processing Cores. This section displays real-time operational metrics for each core.
| Item | Description |
|---|---|
| Core ID | The identifier for the individual processing core within the NPU (e.g., Core :0). |
| Util | Utilization (Percentage). The percentage of time the core is actively processing NPU tasks. High utilization (near 100%) indicates high workload. |
| Temp | Temperature (Degrees Celsius). The current operating temperature of the core. Critical for checking for overheating and thermal throttling. |
| Voltage | Voltage (Millivolts). The electrical voltage currently being supplied to the core. Reflects power management status. |
| Clock | Clock Rate (Megahertz). The current operating frequency of the core. Directly impacts processing speed and performance. |

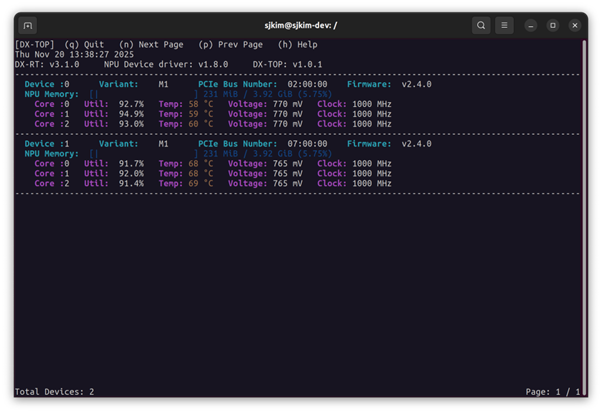

Figure. Example of DX-TOP Monitoring Utility Screen
Command Controls (Help Menu)
The following commands are available at the top of the DX-TOP interface for navigation and control.
| Command | Action |
|---|---|
| (q) Quit | Exits the DX-TOP application. |
| (n) Next Page | Navigates to the next page of device information (if more devices are present than can fit on one screen). |
| (p) Prev Page | Navigates to the previous page of device information. |
| (h) Help | Displays the help screen or a summary of available commands. |
Performance Benchmarking Utility
The dxbenchmark tool is a CLI utility designed to automate the performance benchmarking of deep learning models and generate detailed, visualized reports.
- Comprehensive Execution: Runs all detectable models in the target directory, including sub-directories (
via --recursive). - Detailed Reporting: Generates a single, integrated HTML document with visualizations of key performance indicators (KPIs) and stability metrics.
- Stability Analysis: Includes time-series data visualization (Performance Metrics Over Loops) and the Coefficient of Variation (CV) for jitter analysis.
- Raw Data for Comparison: Outputs version-tagged JSON/CSV files for easy comparison across different Runtime and Driver versions.
CLI Guide
The benchmark tool is executed using the dxbenchmark command.
Running the build script build.sh creates the binary named dxbenchmark in dx_rt/bin.
DXRT v3.1.0 dxbenchmark
Usage:
dxbenchmark [OPTION...]
--dir arg Model directory
--result-path arg Destination of result file (default: .)
--sort arg Sorting criteria
name: Model Name
fps: FPS
time: NPU Inference Time
latency: Latency (default: name)
--order arg Sorting order
asc: Ascending order
desc: Descending order (default: asc)
-l, --loops arg Number of inference loops to perform (default: 0)
-t, --time arg Time duration to perform (default: 0)
--warmup arg Warmup time (default: 10)
-n, --npu arg NPU bounding (default:0)
0: NPU_ALL
1: NPU_0
2: NPU_1
3: NPU_2
4: NPU_0/1
5: NPU_1/2
6: NPU_0/2
-d, --devices arg Specify target NPU devices.
Examples:
'all' (default): Use all available/bound NPUs
'0': Use NPU0 only
'0,1,2': Use NPU0, NPU1, and NPU2
'count:N': Use the first N NPUs
(e.g., 'count:2' for NPU0, NPU1) (default: all)
--only-data Make only data result (csv, json)
--recursive Search models recursively in subdirectories
(default: base directory only)
--use-ort Enable ONNX Runtime for CPU tasks in the model
graph
If disabled, only NPU tasks operate
-v, --verbose Shows NPU Processing Time and Latency
-h, --help Print usage
Basic Usage and Syntax
The execution requires specifying the model source directory and one of the execution termination conditions (-t or -l).
Execution Commands
After building, you can execute the tool directly using the dxbenchmark command without navigating into the dx_rt/bin directory.
| Execution Method | Syntax | Description |
|---|---|---|
| Direct Path | ./dx_rt/bin/dxbenchmark [OPTION...] | Executes by directly specifying the path to the generated binary |
| Direct Execute (Recommended) | dxbenchmark [OPTION...] | Executes directly using the name registered in the environment |
Mandatory Parameters
| Execution Method | Format | Description |
|---|---|---|
| Model Directory | ./dx_rt/bin/dxbenchmark [OPTION...] | The path to the directory containing the models. |
| Termination Condition | -t {Time} | Time duration in seconds. This option is currently prioritized over -l. |
| Loop | -l {Loops} | Number of inference loops. |
Execution Termination Condition Priority
Currently, the execution duration -t {Time} is prioritized . While running based on time is generally suitable for benchmarking, large variations in inference time between models can lead to distortion in graph results.
--dir {Directory}: The path to the directory containing the models.EITHER -t {Time}: Time duration in seconds (takes precedence).OR -l {Loops}: Number of inference loops.
Execution Examples
# Example 1: Run models in the 'models/' directory for 60 seconds
./dxbenchmark --dir models/ -t 60
# Example 2: Run recursively, sort by latency descending, target NPU 0 and 1
./dxbenchmark --dir models/ --recursive --sort latency --order desc -d '0,1'
Output Files and Reporting
The tool generates a highly structured HTML report for visualization and version-controlled raw data files.
HTML Report Structure and Visualization
- Filename Format:
DXBENCHMARK_{YYYY_MM_DD_HHMMSS}.html - Example:
DXBENCHMARK_2025_08_13_174251.html
Raw Data Files
- Purpose: To store the underlying data for version comparison and external analysis.
- Filename Format:
rt_{Runtime Version}_dd_{Device Driver Version}_pd_{PCIe Driver Version}.json/csv - Example:
rt_3.0.0_dd_1.7.1_pd_1.4.1.json
