SDK Version: 2.3.3

MsgBroker Pipeline

The pipeline demonstrates how to process a local video file with the YOLOv7 model for object detection, convert the results into a structured message format (e.g., JSON), and publish them to a message broker such as MQTT or Kafka for downstream applications.

Basic MsgBroker Pipeline Process

This section demonstrates how to run a basic message broker pipeline demo using MQTT or Kafka

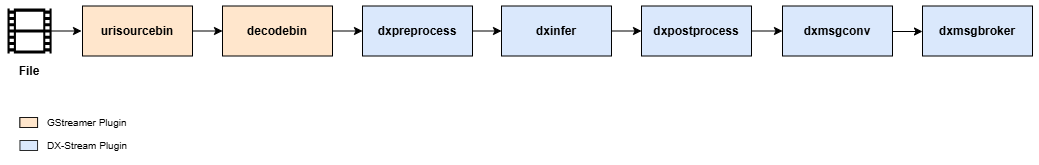

The pipeline in the figure is defined in dx_stream/pipelines/broker/*.sh and can be used as a reference for execution.

Explanation

Element Descriptions

dxmsgconv: Transform element that processes inference metadata from upstream DxPostprocess elements and converts it into structured message payloads (typically JSON) using a user-defined custom library. The element requires a library-file-path property pointing to the custom message conversion library.
dxmsgbroker: Sink element that transmits payload messages to external message brokers (MQTT or Kafka) using a Broker Abstraction Layer (BAL) that provides unified interface for different broker types.

Usage Notes

Pipeline Execution

Server Side: Run the DX-STREAM pipeline with broker output on the processing server
Client Side: Run the consumer application to receive and process messages

Basic Properties

dxmsgconv: Converts inference metadata to JSON format
dxmsgbroker: Publishes messages to MQTT/Kafka broker

Quick Start Demo

This section demonstrates how to run a basic message broker pipeline demo using MQTT or Kafka.

MQTT Demo

1. Server Setup (Processing Server with Message Broker)

# Install and start Mosquitto MQTT broker
sudo apt install mosquitto mosquitto-clients
sudo systemctl start mosquitto
sudo systemctl enable mosquitto

2. Run DX-STREAM Pipeline (Server Side)

# Execute the broker pipeline on processing server
# The pipeline uses YOLOv7 model for object detection and converts to JSON messages
cd /path/to/dx_stream
./pipelines/broker/run_dxmsgbroker_mqtt.sh

# Or run manually with custom settings
gst-launch-1.0 \
  urisourcebin uri=file:///path/to/your/video.mp4 ! decodebin ! \
  dxpreprocess config-file-path=configs/Object_Detection/YoloV7/preprocess_config.json ! \
  dxinfer config-file-path=configs/Object_Detection/YoloV7/inference_config.json ! \
  dxpostprocess config-file-path=configs/Object_Detection/YoloV7/postprocess_config.json ! \
  dxmsgconv library-file-path=/usr/lib/libdx_msgconvl.so config-file-path=configs/msgconv_config.json ! \
  dxmsgbroker broker-name=mqtt conn-info=localhost:1883 topic=test

3. Client Application (Any Machine - Consumer Only)

# Install Python MQTT client library (client machine only needs this)
pip install paho-mqtt

# Run the MQTT client to receive messages from server
python3 /usr/local/share/gstdxstream/bin/mqtt_sub_example.py -n <server_ip> -p 1883 -t test

# Or for C++ version
mqtt_sub_example -h <server_ip> -t test -p 1883

Kafka Demo

1. Server Setup (Processing Server with Message Broker)

# Install Java and Kafka
sudo apt install default-jdk
wget https://downloads.apache.org/kafka/3.9.0/kafka_2.13-3.9.0.tgz
tar -xzf kafka_2.13-3.9.0.tgz
cd kafka_2.13-3.9.0

# Start Zookeeper and Kafka server
bin/zookeeper-server-start.sh config/zookeeper.properties &
bin/kafka-server-start.sh config/server.properties &

2. Run DX-STREAM Pipeline (Server Side)

# Execute the broker pipeline on processing server
cd /path/to/dx_stream
./pipelines/broker/run_dxmsgbroker_kafka.sh

# Or run manually with custom settings
gst-launch-1.0 \
  urisourcebin uri=file:///path/to/your/video.mp4 ! decodebin ! \
  dxpreprocess config-file-path=configs/Object_Detection/YoloV7/preprocess_config.json ! \
  dxinfer config-file-path=configs/Object_Detection/YoloV7/inference_config.json ! \
  dxpostprocess config-file-path=configs/Object_Detection/YoloV7/postprocess_config.json ! \
  dxmsgconv library-file-path=/usr/lib/libdx_msgconvl.so config-file-path=configs/msgconv_config.json ! \
  dxmsgbroker broker-name=kafka conn-info=localhost:9092 topic=test

3. Client Application (Any Machine - Consumer Only)

# Install Python Kafka client library (client machine only needs this)
pip install kafka-python

# Run the Kafka client to receive messages from server
python3 /usr/local/share/gstdxstream/bin/kafka_consume_example.py -n <server_ip> -p 9092 -t test

# Or for C++ version
kafka_consume_example -n <server_ip> -p 9092 -t test

Network Architecture

Processing Server:

DX-STREAM Pipeline (dxmsgconv + dxmsgbroker)
Message Broker Service (MQTT/Kafka)

Client Machine:

Consumer Application (Python/C++)
Only needs client library (paho-mqtt/kafka-python)
No broker service needed

Connection:

Processing Server ←→ Client Machine via network

Requirements:

Server: DX-STREAM + Message Broker Service (MQTT/Kafka)
Client: Only consumer application + client library (paho-mqtt/kafka-python)

NOTE

Replace <server_ip> with the actual IP address of your processing server. For local testing, use localhost.

Pipeline Properties

The broker pipelines use the following key properties:

DxMsgConv Element:

config-file-path: Path to configuration file containing message format properties (optional)
library-file-path: Path to custom message converter library (required)
message-interval: Frame interval for message conversion (default: 1)

DxMsgBroker Element:

broker-name: Message broker type - "mqtt" or "kafka" (required)
conn-info: Connection string in format host:port (required)
topic: Topic name for message publishing (required)
config: Path to broker configuration file for advanced settings (optional)

Advanced MsgBroker Configuration

This section describes the detailed steps required to set up secure communication for the MQTT and Kafka message brokers, including SSL/TLS encryption and client authentication

MQTT Security Configuration

SSL/TLS Encryption Setup

1. Generate CA Certificate and Server Keys

# Create Root CA
openssl genrsa -out ca.key 2048
openssl req -new -x509 -days 360 -key ca.key -out ca.crt -subj "/C=KR/ST=KK/L=SN/O=DXS/OU=Test/CN=TestCA"

# Create Server Certificate (CN must match hostname)
openssl genrsa -out server.key 2048
openssl req -new -out server.csr -key server.key -subj "/C=KR/ST=KK/L=SN/O=DXS/OU=Server/CN=DXS-BROKER"
openssl x509 -req -in server.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out server.crt -days 360
openssl verify -CAfile ca.crt server.crt

# Create Client Certificate (for client authentication)
openssl genrsa -out client.key 2048
openssl req -new -out client.csr -key client.key -subj "/C=KR/ST=KK/L=SN/O=DXS/OU=Client/CN=DXS-CLIENT"
openssl x509 -req -in client.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out client.crt -days 360
openssl verify -CAfile ca.crt client.crt

# Move certificates to mosquitto directories
sudo mkdir -p /etc/mosquitto/ca_certificates /etc/mosquitto/certs
sudo mv ca.crt /etc/mosquitto/ca_certificates/
sudo mv ca.key /etc/mosquitto/ca_certificates/
sudo mv server.crt server.key /etc/mosquitto/certs/
sudo mv client.crt client.key /etc/mosquitto/certs/

# Set correct ownership and permissions
sudo chown mosquitto:mosquitto /etc/mosquitto/ca_certificates/ca.crt
sudo chown mosquitto:mosquitto /etc/mosquitto/certs/server.crt /etc/mosquitto/certs/server.key
sudo chmod 644 /etc/mosquitto/ca_certificates/ca.crt
sudo chmod 600 /etc/mosquitto/ca_certificates/ca.key
sudo chmod 644 /etc/mosquitto/certs/server.crt
sudo chmod 600 /etc/mosquitto/certs/server.key
sudo chmod 644 /etc/mosquitto/certs/client.crt
sudo chmod 600 /etc/mosquitto/certs/client.key

2. Configure Mosquitto Server

# Edit /etc/mosquitto/mosquitto.conf
sudo tee /etc/mosquitto/mosquitto.conf << 'EOF'
# Basic settings
persistence true
persistence_location /var/lib/mosquitto/
log_dest file /var/log/mosquitto/mosquitto.log
include_dir /etc/mosquitto/conf.d

# Global auth settings (apply to all listeners)
allow_anonymous false
password_file /etc/mosquitto/passwd

# Plain MQTT port
listener 1883

# TLS MQTT port
listener 8883
cafile /etc/mosquitto/ca_certificates/ca.crt
certfile /etc/mosquitto/certs/server.crt
keyfile /etc/mosquitto/certs/server.key
require_certificate false
use_identity_as_username false
EOF

3. Setup Authentication

# Create user credentials
sudo mosquitto_passwd -b /etc/mosquitto/passwd user 1234
sudo chmod 644 /etc/mosquitto/passwd
sudo chown root:mosquitto /etc/mosquitto/passwd

# Restart mosquitto
sudo systemctl restart mosquitto
sudo systemctl status mosquitto

4. Test Connection

# Test plain MQTT (port 1883)
mosquitto_sub -h localhost -p 1883 -t test -u user -P 1234

# Test TLS MQTT (port 8883) - in another terminal
# For self-signed certificates, use --insecure option
mosquitto_sub -h localhost -p 8883 -t test -u user -P 1234 --cafile /etc/mosquitto/ca_certificates/ca.crt --insecure

# Publish test message
mosquitto_pub -h localhost -p 8883 -t test -u user -P 1234 --cafile /etc/mosquitto/ca_certificates/ca.crt --insecure -m "TLS test message"

5. DxMsgBroker Configuration File

Create broker_mqtt.cfg:

# Authentication
username = user
password = 1234

# Client ID (optional)
client-id = dx_stream_client

# SSL/TLS Configuration
tls_enable = 1
tls_insecure = 1
tls_cafile = /etc/mosquitto/ca_certificates/ca.crt
tls_capath = /etc/mosquitto/ca_certificates
tls_certfile = /etc/mosquitto/certs/client.crt
tls_keyfile = /etc/mosquitto/certs/client.key

6. Modify DX-Stream Pipeline

    gst-launch-1.0 -e urisourcebin uri=file://$INPUT_VIDEO_PATH ! decodebin ! \
                    dxpreprocess config-file-path=$SRC_DIR/configs/Object_Detection/YoloV7/preprocess_config.json ! queue ! \
                    dxinfer config-file-path=$SRC_DIR/configs/Object_Detection/YoloV7/inference_config.json ! queue ! \
                    dxpostprocess config-file-path=$SRC_DIR/configs/Object_Detection/YoloV7/postprocess_config.json ! queue ! \
                    dxmsgconv config-file-path=$SRC_DIR/configs/msgconv_config.json ! queue ! \
                    dxmsgbroker broker-name=mqtt conn-info=localhost:8883 topic=test config=$SRC_DIR/configs/broker_mqtt.cfg

Kafka Security Configuration

SSL/TLS Setup for Kafka

1. Generate Certificates for Kafka

Follow the librdkafka SSL guide for detailed certificate generation.

2. Configure Kafka Server (server.properties)

# SSL Configuration
ssl.protocol=TLS
ssl.enabled.protocols=TLSv1.2,TLSv1.1,TLSv1
ssl.keystore.type=JKS
ssl.keystore.location=/path/to/kafka.server.keystore.jks
ssl.keystore.password=server_keystore_password
ssl.key.password=server_key_password
ssl.truststore.type=JKS
ssl.truststore.location=/path/to/kafka.server.truststore.jks
ssl.truststore.password=server_truststore_password
ssl.client.auth=required

3. DxMsgBroker Kafka Configuration

Create broker_kafka.cfg:

[kafka]
# Message size limits
message.max.bytes=10485760

# SSL Configuration
security.protocol=ssl
ssl.ca.location=/path/to/ca-cert.pem
ssl.certificate.location=/path/to/client-cert.pem
ssl.key.location=/path/to/client-key.pem
ssl.key.password=client_key_password
