Multi Stream Pipeline

There are two possible approaches to building a pipeline structure for multi-stream inference.

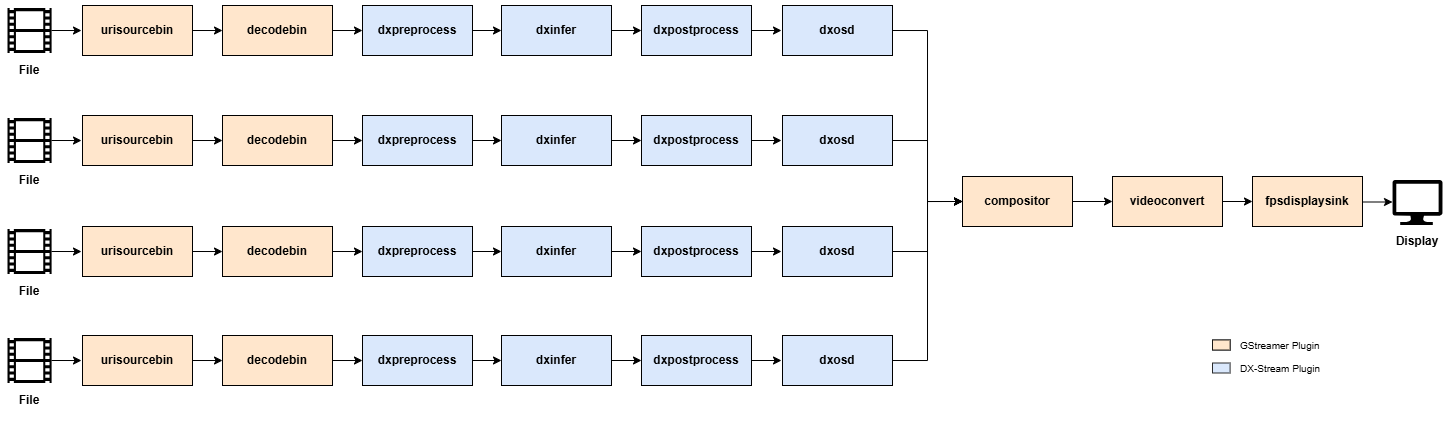

One approach is to configure an independent inference sub-pipeline for each stream, as shown in the figure below.

In this case, each sub-pipeline performs inference asynchronously, maximizing the utilization of hardware resources.

The pipeline in the figure is defined in dx_stream/pipelines/multi_stream/run_multi_stream.sh and can be used as a reference for execution.

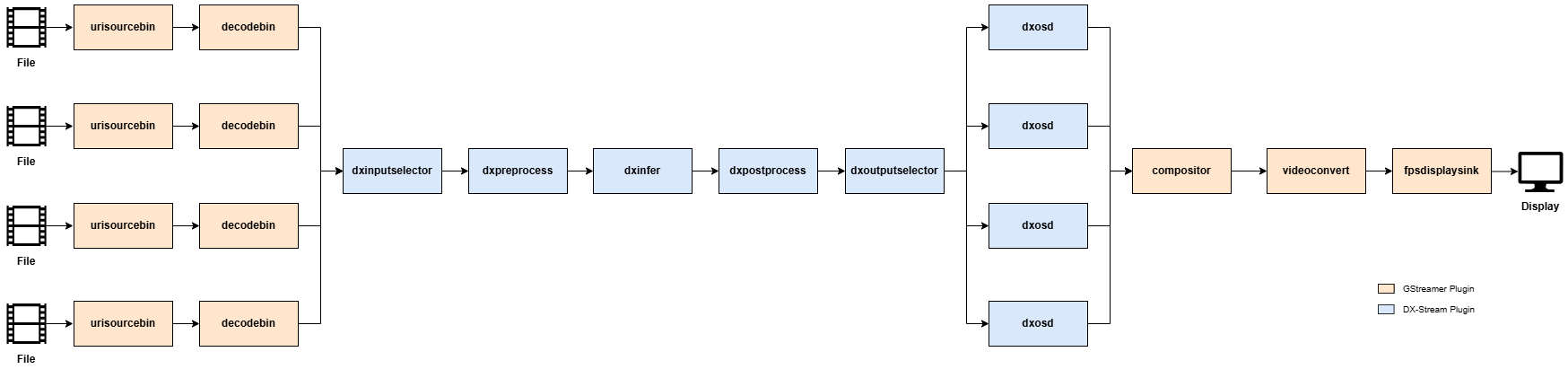

The other approach uses DxInputSelector and DxOutputSelector.
DxInputSelector is an N:1 element that receives buffers from multiple input streams and forwards the one with the smallest PTS downstream first.
The selected buffer passes through a single inference pipeline for processing, and DxOutputSelector then redistributes the results back to their corresponding streams.

The pipeline in the figure is defined in dx_stream/pipelines/multi_stream/run_multi_stream_selector.sh and can be used as a reference for execution.

Explanation

Element Descriptions

• compositor: Draws multiple stream buffers received through sink pads at specified positions. In the example above, it is used for tiled display of inference results from each stream.
• dxinputselector: Selects the buffer with the smallest PTS among multiple input streams received through sink pads and pushes it downstream.
• dxoutputselector: Routes buffers received from upstream back into multiple output streams.
• dxscale: Scales video frames to a specified resolution. Used to resize streams before display.

Usage Notes

• Depending on the model size, using a multi sub-pipeline structure may put a burden on memory resources
• While sub-pipeline structures can offer advantages in processing speed, the performance gain may be negligible compared to selector-based pipelines depending on the environment.
• DxScale and DxConvert must be placed before DxInputSelector or after DxOutputSelector (i.e., per-stream). These elements require stable caps and cannot handle the interleaved multi-stream output of DxInputSelector where caps change on every buffer.

---
